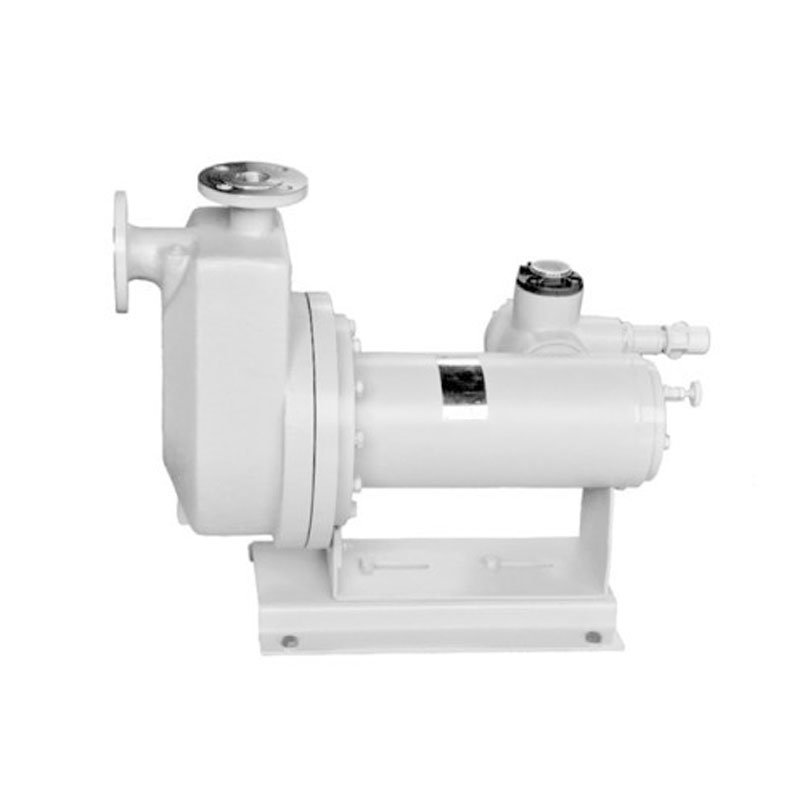

Self Priming (G Type)

■ IDEAL FOR HIGH TEMPERATURE APPLICATIONS
This pump type is designed to handle liquids above 200°C, such as heat transfer oil and hot water.
Cooling and bearing lubrication on the motor side are achieved by circulating liquid through an auxiliary impeller to an external heat exchanger.
An adapter between the casing and motor minimizes the flow of high-temperature liquid to the motor side, effectively reducing heat impact.

■ NO INSULATION REQUIRED
Equipped with a standard water-cooled jacket, eliminating the need for additional motor insulation.

■ YUEMAX OFFERS MULTISTAGE DESIGN FOR HIGH HEAD & HIGH EFFICIENCY
YUEMAX provides multistage B-type pumps with an optimized number of impellers to achieve the required head while maintaining high efficiency, supported by extensive application experience.

Applications
Heat transfer oil, hot water, petroleum refining processes, petrochemical processes

Use

Pumping from underground tanks, Extraction from tank trucks, Extraction from drums
